eco // 07 The Reinvention of the Wheel Compactable Urban Bycycle design

eco // 07 designed by Victor M. Aleman which is a Compactable Urban Bycicle designed to save space...

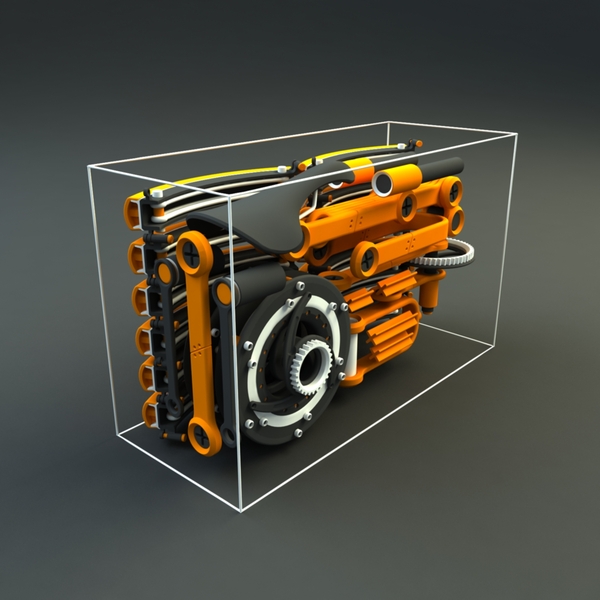

eco // 07 designed by Victor M. Aleman which is a Compactable Urban Bycicle designed to save space. when it is being transported or it is not in use. The Wheel is composed by six modules, each one has a double pivot in the joints, this allows the wheel to fold and become smaller, the spokes are contained in the inner structure of the wheel, when you unfold the system, the spokes rotate to the center of the mechanism where it attach to the center of the wheel. The double triangule structure is composed by expandable modules, each one collapses to a smaller dimension and then this modules align by the rotation of the axis in the joint of the structure, to keep in position all the structure is used an special part in a form of an X that aligns all the modules to their position.
